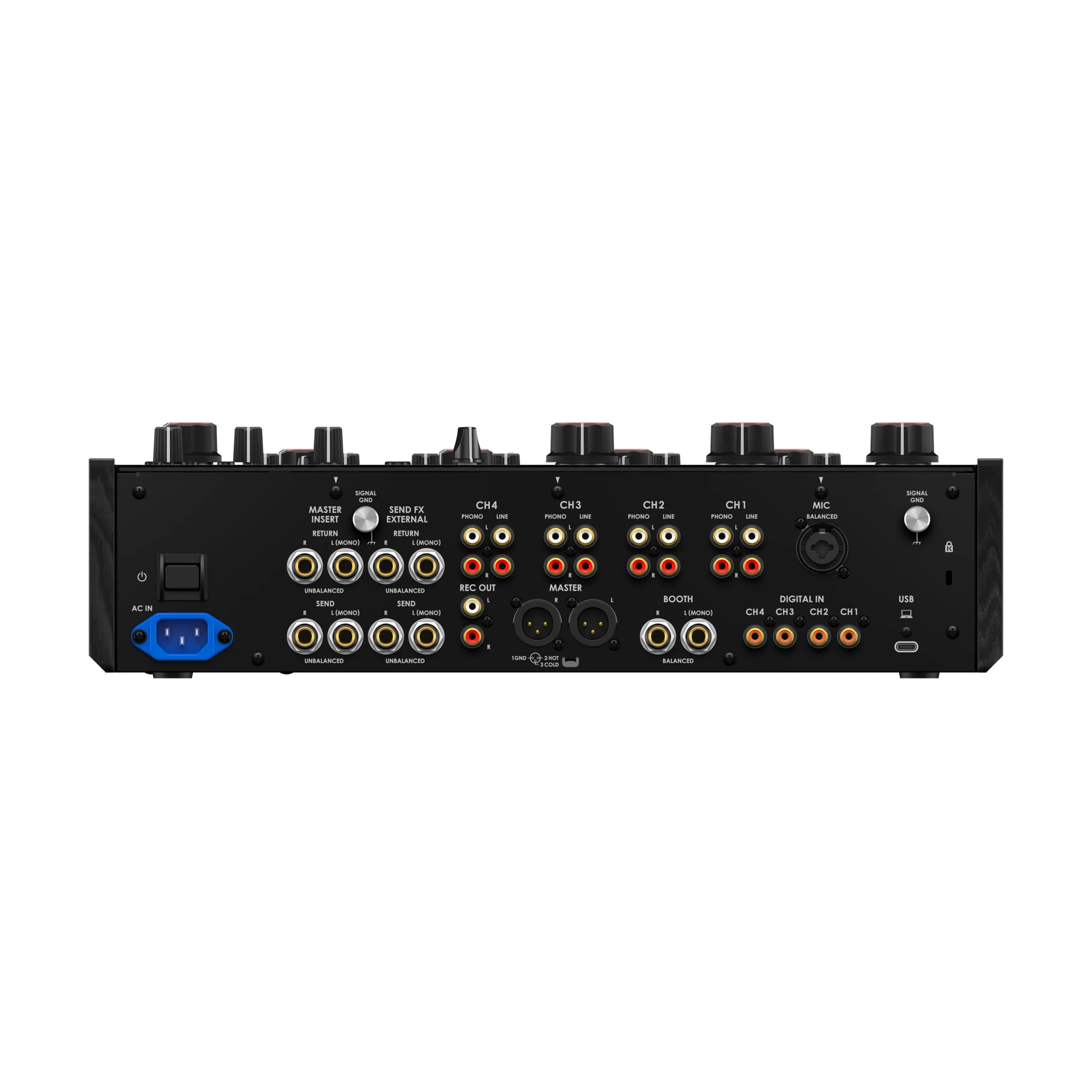

The AlphaTheta Euphonia mixer offers a euphoric audio experience, blending digital clarity with rich analog tones never before heard in a DJ mixer. It uses high - quality 32 - bit A/D and D/A converters and 96kHz/64bit floating point mixing in the DSP, leveraging AlphaTheta's long - developed digital signal processing tech. This ensures a clear sound that precisely reproduces the music's expression. Specifications: Max external dimensions are 429.2mm (16.90') W × 331.0mm (13.03') D × 119.9mm (4.72') H. The main unit weighs 9.5 kg / 20.94 lbs. Frequency response is 20 Hz － 40 kHz (LINE). S/N ratios vary: 107 dB (USB, DIGITAL IN), 88 dB (PHONO), 105 dB (LINE), 79 dB (MIC). It requires AC 110 V － 240 V, 50 Hz / 60 Hz and consumes 43 W. Accessories include a power cord, warranty (in some regions), quick start guide, and usage precautions. Compatible with rekordbox and Serato DJ Pro. Inputs are Digital In × 4 (coaxial), Line × 4 (RCA), Phono × 4 (RCA), Mic x 1 (XLR & 1/4' TRS jack). Outputs are Master × 1 (XLR), Booth × 1 (1/4' TRS jack), Rec × 1 (RCA), Phones × 2 (1/4' stereo phone jack, 3.5 mm stereo mini jack). There's a USB Type - C × 1. Other features are Send × 2 (1/4' TS jack), Return × 2 (1/4' TS jack).
Using the AlphaTheta Euphonia mixer is a breeze. First, connect it to a power source using the provided power cord. Make sure the voltage is within the 110 - 240V range. You can connect different audio sources like digital devices, line - level equipment, turntables, or a microphone through the various input options. Once connected, you can start mixing your tracks. Use the mixer's controls to adjust the volume, balance, and effects. When using the USB connection, it's compatible with rekordbox and Serato DJ Pro. Keep the mixer in a dry and well - ventilated area to avoid overheating. Avoid exposing it to direct sunlight or extreme temperatures. Regularly clean the surface with a soft, dry cloth. If you're not using it for a long time, unplug it from the power source. Refer to the quick start guide for any initial setup questions and the precautions for use for safety information.
