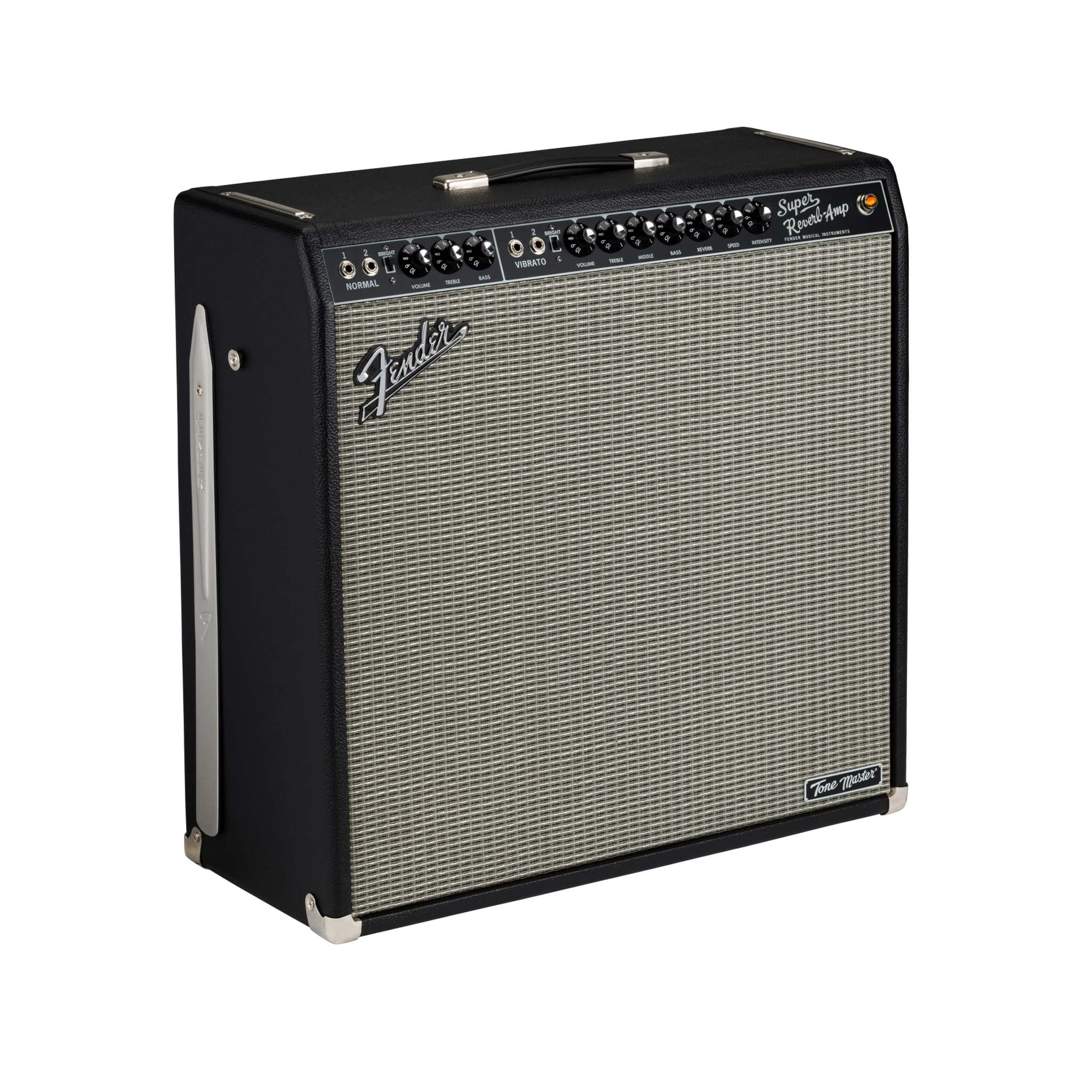

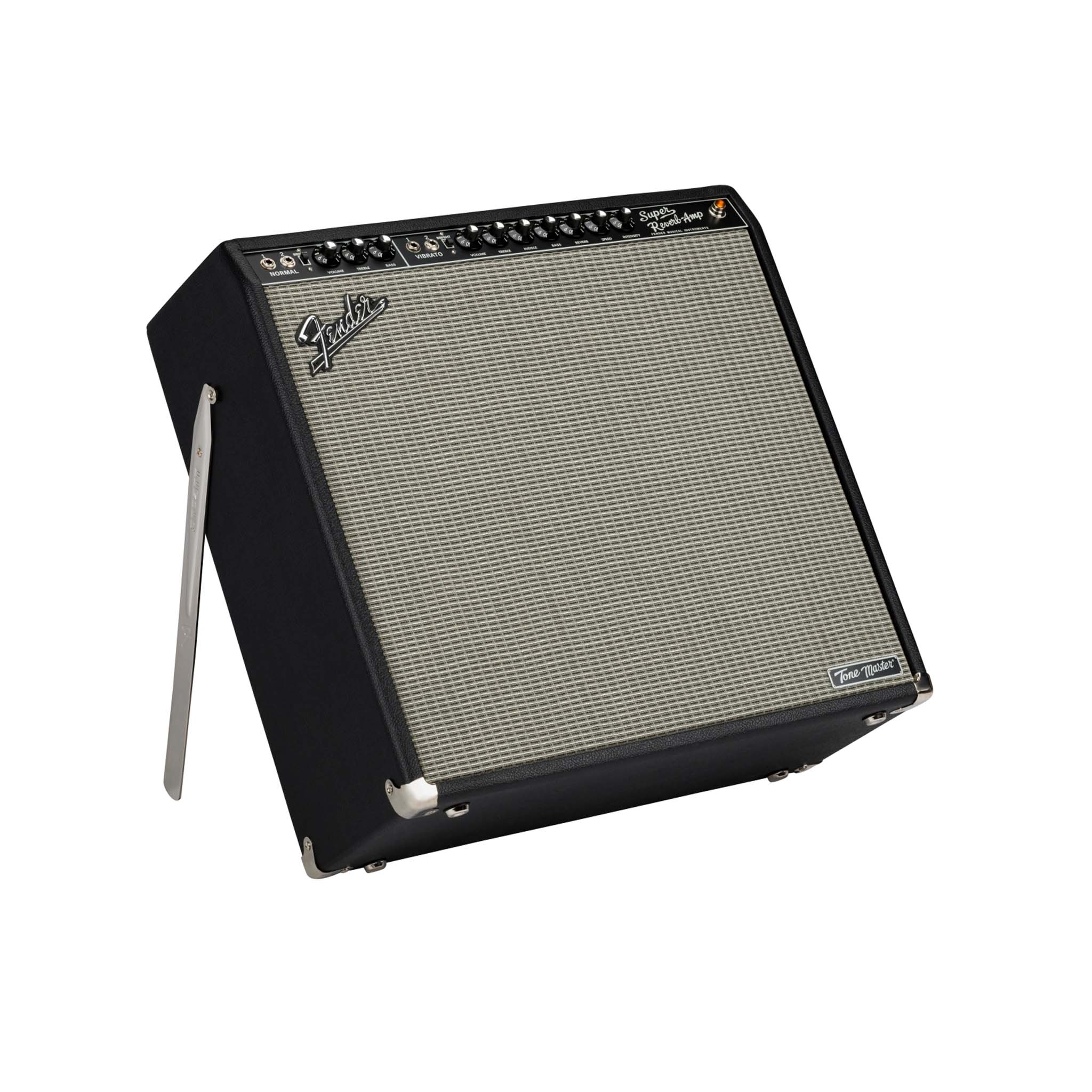

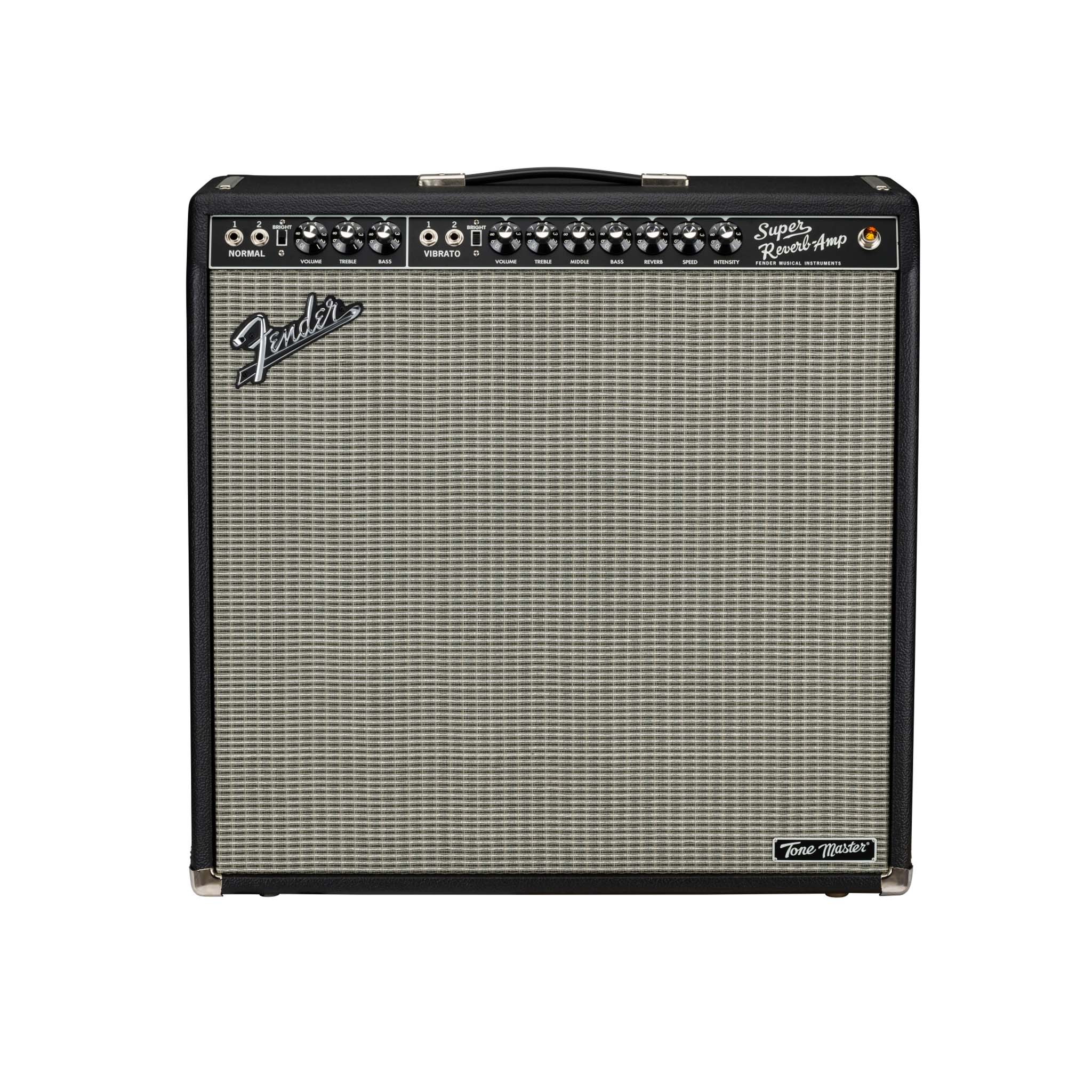

The Fender Tone Master Super Reverb is a remarkable addition to Fender's renowned series of legendary amplifiers. It uses Fender's exclusive Tone Master modelling process and comes with player - friendly features to boost the functionality of these amps. This amplifier perfectly replicates the classic tube amplifier while adding modern features for today's demanding professionals.
It combines the mid - 60s black panel amplifier circuit with four 10” Jensen P - 10R alnico speakers. You'll get the rich, beefy sound of a large 4x10 cabinet, the clear chime of Jensen speakers, and a mid - powered 45W (simulated) amplifier that's easy to drive. Once you plug in, you can't miss this distinct sound. And it's lightweight, so you can easily move it and adjust the volume for any venue.
With modern features like selectable output power and an IR line out, it's great for the stage, studio, or home. Here are its key features:

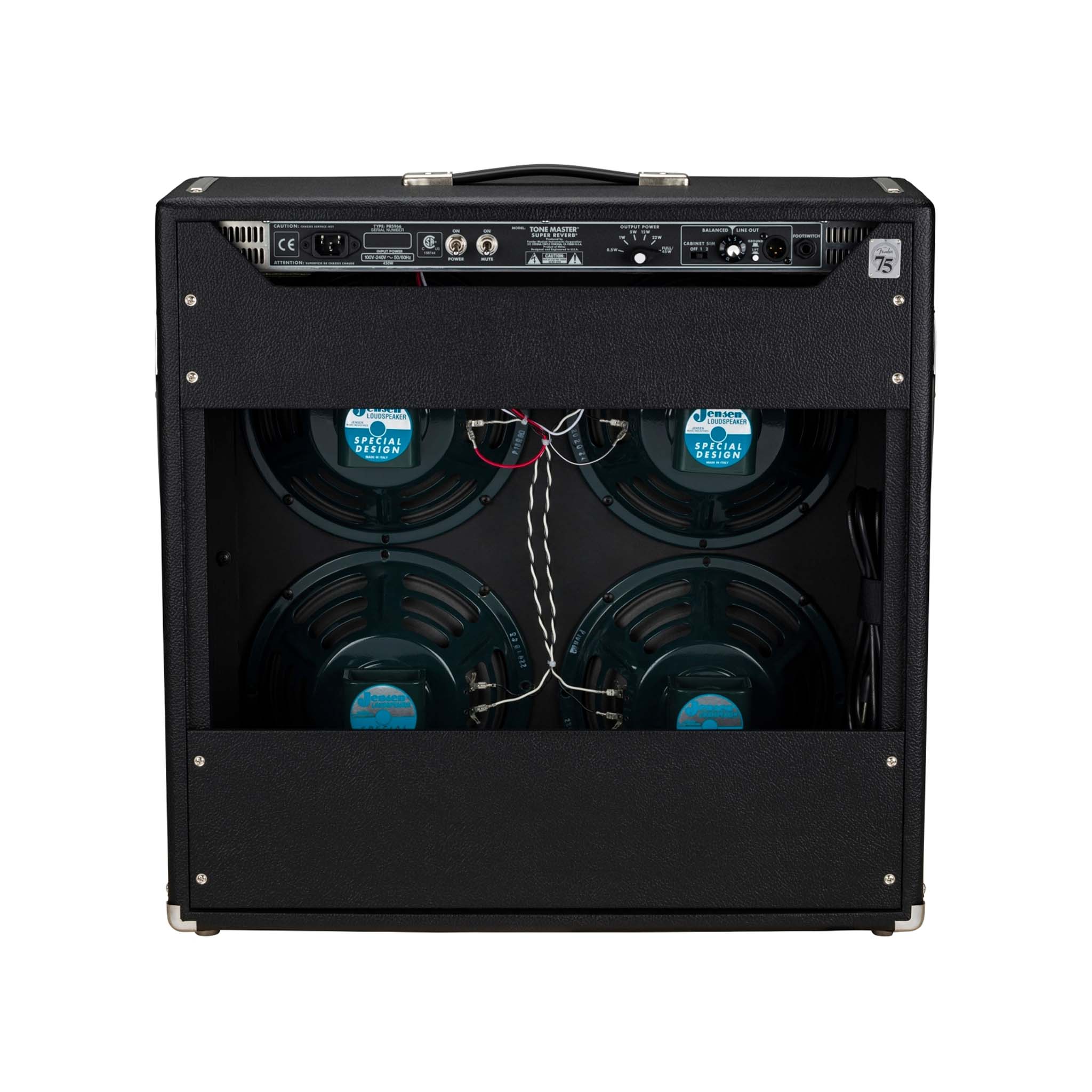

- Four Jensen P - 10R alnico speakers for amazing sound
- Normal and Vibrato channels with two inputs and Bright switches each
- Rear - panel output power selector with full power and five attenuated settings
- Balanced XLR line output with IR cabinet simulations, level control, and ground switch
- Lightweight meranti ply cabinet for easy transport
- Power jewel with different colors for normal operation, warmup, and mute/silent mode
- USB port for firmware upgrades
- Universal 100V – 240V operation

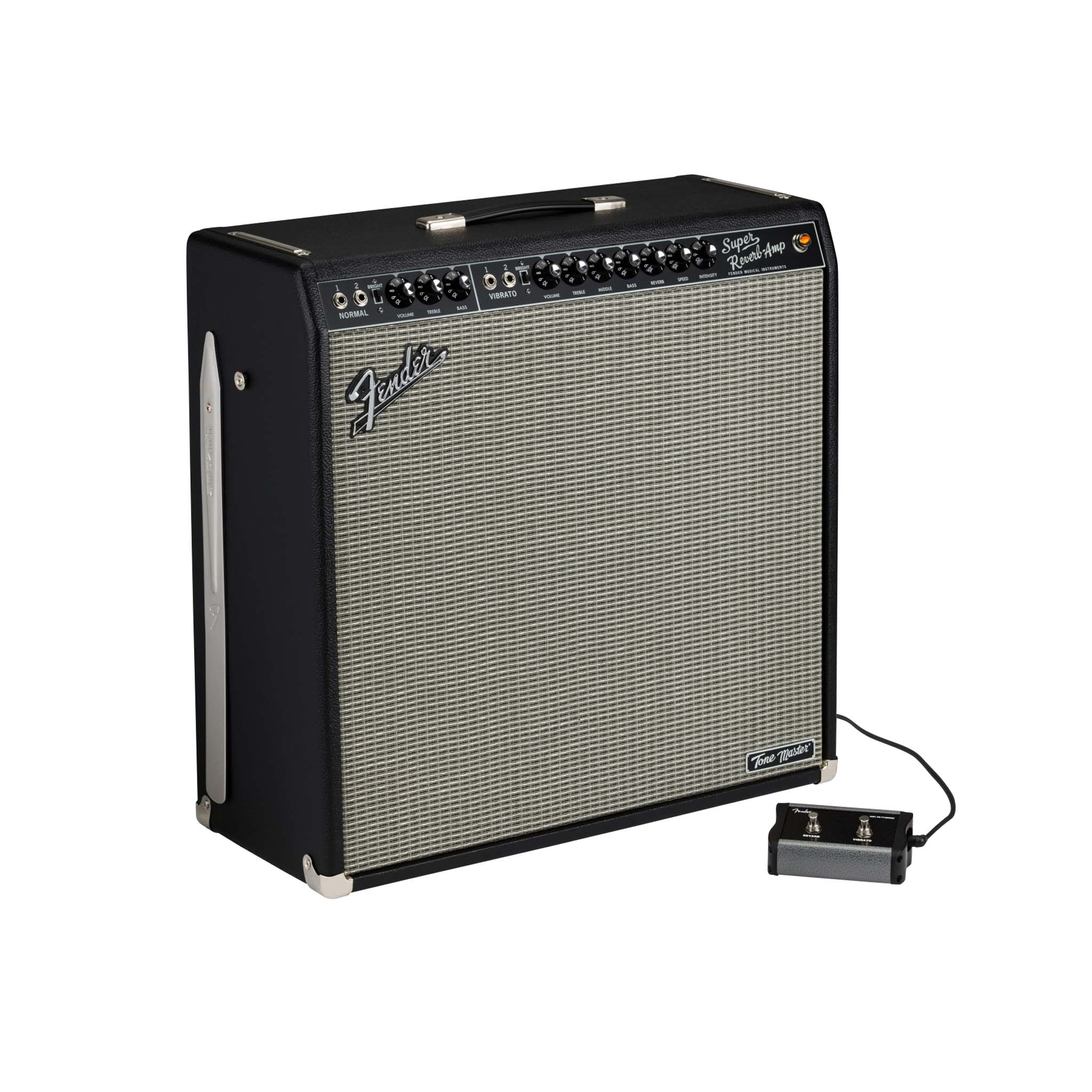

- Comes with a cover and a two - button footswitch
Specifications:
- Voltage: 230V
- Wattage: 45 Watts into 2 ohms
- Controls: Normal Channel has Bright Switch, Volume, Treble, Bass; Vibrato Channel has Bright Switch, Volume, Treble, Middle, Bass, Reverb; Vibrato has Speed, Intensity
- Channels: Two (Normal and Vibrato)
- Inputs: Four (1/4', Two Normal and Two Vibrato)
- Effects: Reverb, Tremolo
- Line Out: One (Balanced XLR with Ground Lift and Level Control)
- Cabinet Material: Lightweight Meranti Plywood
- Amplifier Jewel: Red (Power), Red/Amber (Warmup), Amber (Mute)
- Handle: Moulded Plastic Strap with Nickel - Plated Caps
- Speakers: Four 10' Jensen® P10R with Alnico Magnet (2 ohms)
- Includes Accessories: Black Textured Vinyl Amp Cover, 2 - Button Footswitch
- Dimensions: 24.75” (H) x 25.12” (W) x 10.5” (D) / 63 cm (H) x 63.5 cm (W) x 26.5 cm (D)
- Weight: 36 lbs (16.3 kg)
Using your Fender Tone Master Super Reverb is a breeze. First, connect it to a power source within the 100V - 240V range. You can use the rear - panel output power selector to choose the power level that suits your needs, whether it's full power or one of the five attenuated settings.
When connecting your guitar, you have four inputs to choose from, two for the Normal channel and two for the Vibrato channel. Each channel has a Bright switch, so you can add a bit of extra sparkle to your sound if you like. Adjust the volume, treble, bass, and other controls according to your preferences.
The balanced XLR line output is great for recording or connecting to a PA system. You can control the level and use the ground switch to reduce noise.
Here are some important notes. Make sure to let the amplifier warm up for a few minutes before you start playing. The power jewel will change color to show you when it's warming up and when it's in normal operation. When you're done, use the mute/silent mode to turn it off properly.
For maintenance, keep the amplifier clean and dry. Use a soft, dry cloth to wipe it down. If you need to update the firmware, just connect it to a computer via the USB port. And don't forget to use the included black textured vinyl amp cover to protect it when it's not in use. With proper use and care, your Fender Tone Master Super Reverb will serve you well for years to come.
